Premium Stoves

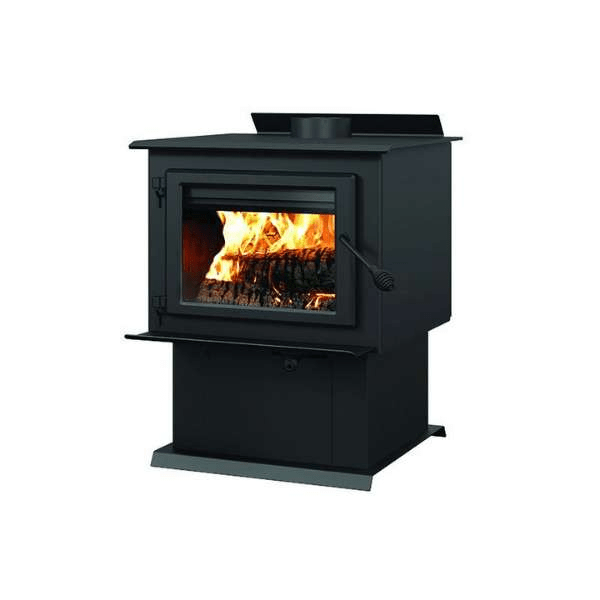

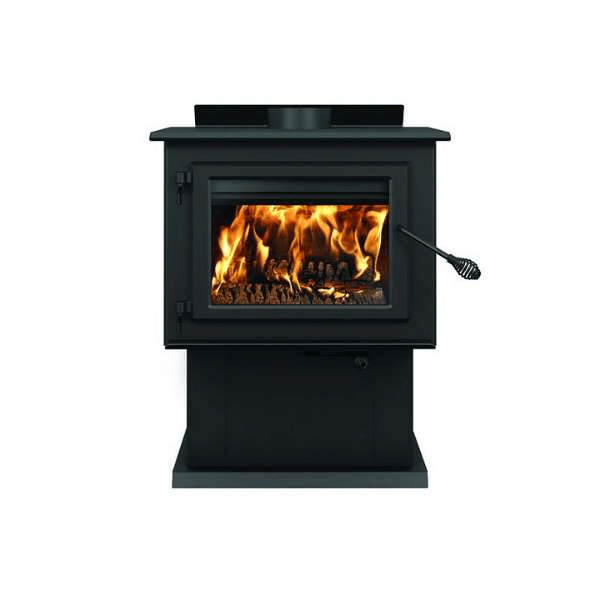

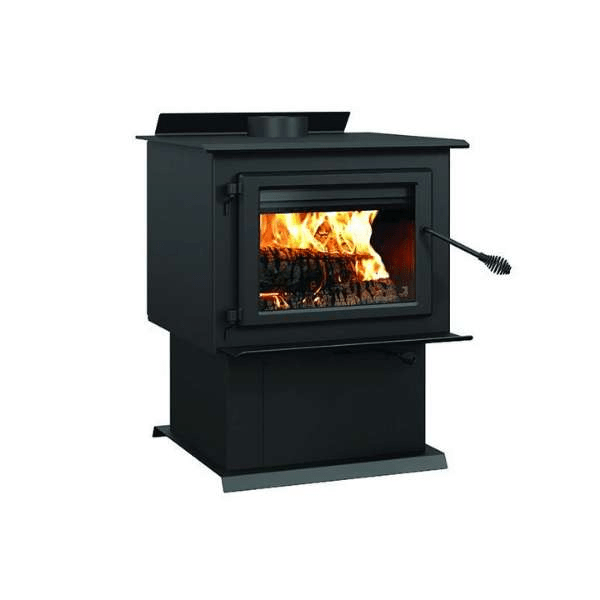

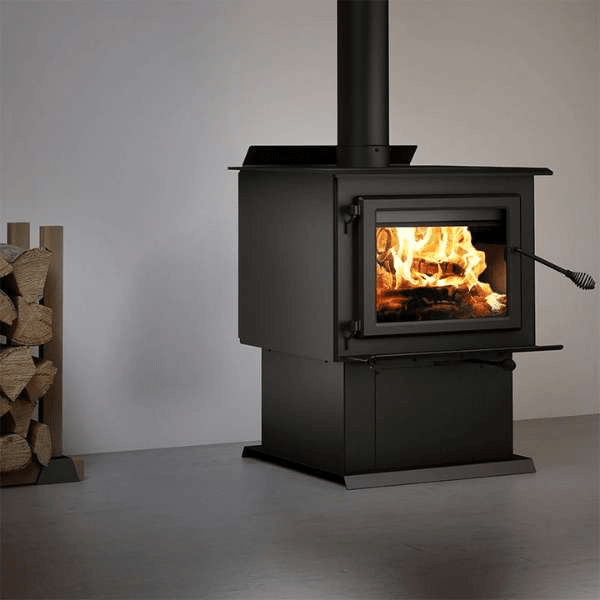

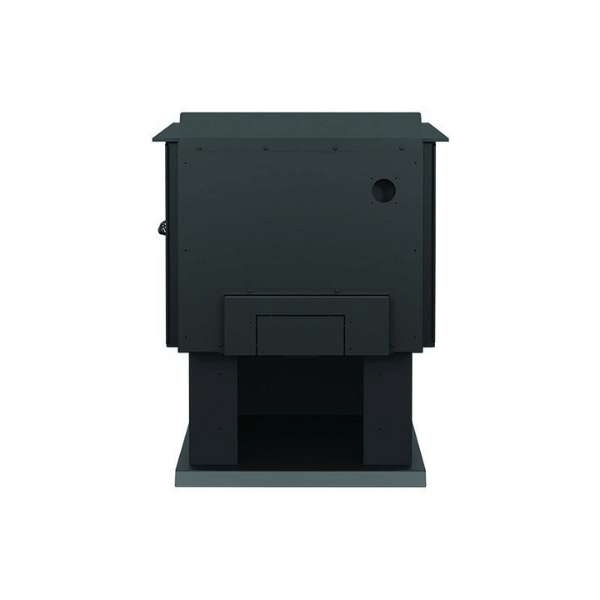

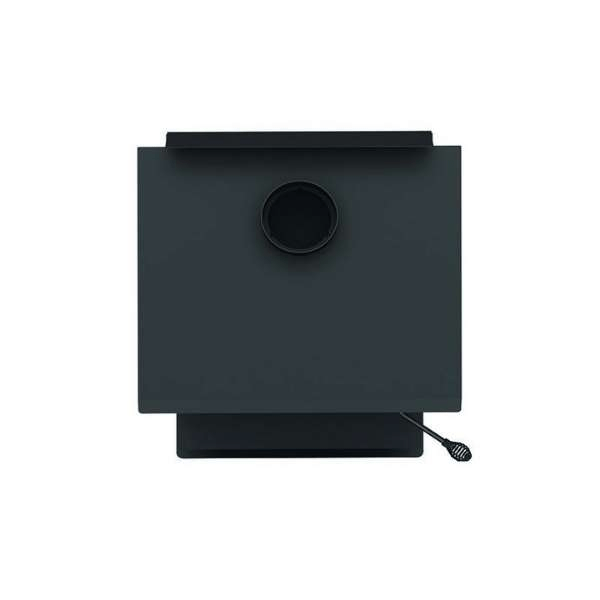

Century Heating FW3500 Wood Stove CB00024
Quantity:
Description
⌄
Century Heating FW3500 Wood Stove CB00024
Features
FW3500 Century Heating: The Perfect Wood Stove For Big Rooms & Harsh Climates
Extra-large and EPA certified the Century Heating FW3500 wood stove is perfect for large spaces and harsh climates. Featuring a C-Cast heat shield for durability, a cast iron door, ceramic glass, and a non-catalytic combustion system, this stove is designed and made in Canada. Ash lip, air intake damper, and rear air deflector are included.
Century Wood Burning Fireplace Features:
- Extra-large firebox, ideal for large spaces and harsh climates
- Included: pedestal, ash lip, air intake damper and rear air deflector
- C-Cast heat shield for added durability
- Cast iron door and ceramic glass
- EPA certified at 1.32 g/h
- Non-catalytic combustion system
- Designed and made in Canada
- Firebox lined with refractory bricks for better heat distribution
- Optimum efficiency : 77 %
- Average particulate emissions rate : 1.32 g/h
- Steel thickness – top : 5/16"
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Approved for a mobile home installation
- Recommended heating area-ft² : 1,000 - 2,700
OPTIONS: 100 CFM blower, thermodisc, ash drawer, firescreen, fresh air intake kit, fresh air intake register and insulated flex pipe for fresh air intake.
Century Cast Iron Wood Stove Specifications:
|
Appliance Performance
|
|
| Fuel type | Dry cordwood |
| Recommended heating area | 2,300 - 3,500 ft² |
| Overall firebox volume | 3.5 ft³ |
| EPA loading volume | 2.84 ft³ |
| Maximum burn time | 10 h |
| Maximum heat output-dry cordwood | 110,000 BTU/h (32.2 kW) |
| Minimum overall heat output rate | 18,200 BTU/h (5.3 kW) |
| Maximum overall heat output rate | 49,500 BTU/h (14.5 kW) |
| Average overall efficiency-dry cordwood (HHV) | 71% |
| Average overall efficiency-dry cordwood (LHV) | 76% |
| Optimum efficiency | 77% |
| Optimum heat transfer efficiency | 76% |
| Average particulate emission rate | 1.32 g/h |
| Average CO | 92 g/h |
| General Features | |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Premium quality blower included (CFM) | Optional |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12" |
| Overall dimension (Width) | 28 1/8" |
| Overall dimension (Depth) | 31 1/4" |
| Overall dimension (Height) | 35 3/4" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 19" |
| Door opening size (Height) | 9 7/8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 16 5/8" x 11 3/4" |
| Firebox size (Width) | 22 7/8" |
| Firebox size (Height) | 12 7/8" |
| Firebox size (Depth) | 20 1/8" |
| Maximum log length | 22" (16" recommended) |
| Log positioning | Loading over width and over depth |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Warranty | Limited 5 years |
| Shipping weight | 451 lb (205 kg) |
Clearance Requirements:
| Single wall pipe | Double wall pipe | |
| Clearances - Back wall | 14 1/2" | 7 1/2" |
| Clearances - Side wall | 20" | 20" |
| Clearances - Corner | 12" | 10" |
| Clearances - Base of the unit to ceiling ** | 84" | 84" |
Century Mini Wood Stove Manual:
Click Here for Operations and Installation Manual
FW3500 Century Wood Burning Stove Dimensions:
